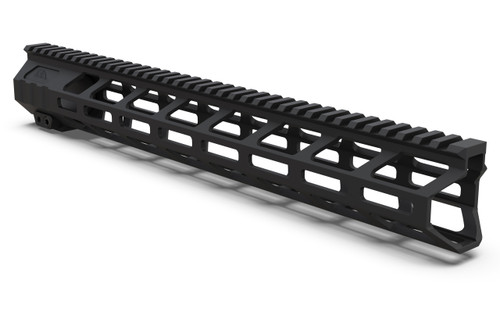

Breek Arms' mission is to provide quality parts at competitive prices. Our newly developed RG2-S (Rugged Rail Mod2 Skeletonized) Handguard line up is an evolution from our previous lineup. Our Patent Pending locking mechanism uses a wedge block system that puts equal pressure all the way around the barrel nut. This gives you better harmonics and a much stronger mounting solution especially when you're putting pressure on the end using a bipod or sling.
The Newly Released RG2 handguards were developed specifically for suppressor builds, each length is designed to fit common barrel length and leave room for all types of quick attach suppressor mounting solutions. The skeletonized design shaves as much weight as posssible without sacrificing the integrity of the handguard. All edges are chamfered, blasted, then Type 3 Hardcoat anodized for a smooth feel.
Highlights
- Patent Pending Rugged Rail System - 2 Piece Wedge Blocks Allow for a Rock Solid Attachment
- Fits AR-15 & M4 variants (223, 556, 9mm, & 300blk)
- Fits Mil Spec Forged & Billet Style Uppers
- Handguard & Wedge Blocks are Made From Aircraft Grade 6061-T6 Aluminum
- Mil-Spec Type III Class 2 Hard Coat Anodize
- Large Cutouts Made to Reduce Weight and Provide Ventilation
- Slim-line, Smooth Handguard Profile
- Magpul Licensed M-LOK Mounting System
- Barrel Nut is Made From High Grade Steel & Coated
- Proudly Made in the USA
- Comes with our Breek Arms 1 Year Warranty
Advanced Specs
Handguard Length: 15 Inches
Total Weight w/ Barrel Nut: 13.3 Ounces
Barrel Nut Weight: 3.1 Ounces
Cutout Length (from longest point): 0.275 Inches
Inside Diameter (ID): 1.375 Inches
Front Outside Diameter (OD): 1.605 Inches
ID + Top Gas Tube Channel: 1.73 Inches
Gas Tube Channel Width: 0.475 Inches
Gas Block Compatibility: Low profile & adjustable low-profile gas blocks
Barrel Nut Wrench Size: 1 1/4"
Color: Black
Installation Instructions
- Torque barrel nut to 40 - 60 ft pounds
- Anti-Seize on the barrel nut is not necessary but recommended
- Line the handguard top rail to the AR upper receiver rail for a seamless fit
- Install wedges and torque two 10/32 bolts to 40 inch pounds
See our FAQ page for common questions regarding handguards and other parts.
6 Reviews Hide Reviews Show Reviews
-
RG2-S handguard
This handguard is easily on par with ones costing more than twice the price. Fit and finish is great. After I received my first one I immediately ordered another.
-
Great product, great service
I bought this rail along with a gas block 6 months before I had planned to use it doing my first build home on leave with my dad. We had limited time to complete the build and when I opened the gas block, two set screws were missing. This was clearly a mistake on Breek’s part, however when I emailed their customer service with my situation, they overnight shipped the parts to me at no charge so I could finish the build before having to leave. They went above and beyond and I just want to say thank you to the staff that made this happen.
-
Solid Hand Guard
A real solid/durable fore end and not bad looking either. I got this for a Grendel build and am pleased with the quality. Only gripe, it's a tad chunky.
-
Good quality basic handguad
It feels good, no blems, going to use it for my next build. Looks like it was machined with care.. My one gripe is no built-in sling mount.
-
Not bad
It’s actually not bad but I do half to order shims so it will line up
-
15" RG2-S Handguard
Best deal out there on a Quality Hanguard. Fit and Finish is excellent. Only con is you have to buy a 1 and 1/4" crows foot. the industry standard is 1 and 3 /16" .
